6.5. Performance Benchmark Tools

This section introduces the performance benchmark tools, their purpose, and the metrics they help measure.

6.5.1. common_benchmark_node.py

common_benchmark_node.py monitors Orbbec camera performance in a ROS environment. It collects and records key camera metrics such as frame rate, latency, system resource usage, and packet loss rate to help evaluate camera node stability and performance. Statistics are updated once per second.

Features:

  • Measures published image frame rate and latency (current, minimum, maximum, and average).

  • Monitors camera node CPU/ARM usage (current, minimum, maximum, and average).

  • Tracks frame drop rate (publisher) and packet loss rate (subscriber).

  • Prints real-time statistics at 1 Hz and saves results to a CSV file.

  • Supports configurable runtime, CSV output path, and camera names.

In ROS1, both frame drop rate and packet loss rate can be measured because the message header contains the seq field.

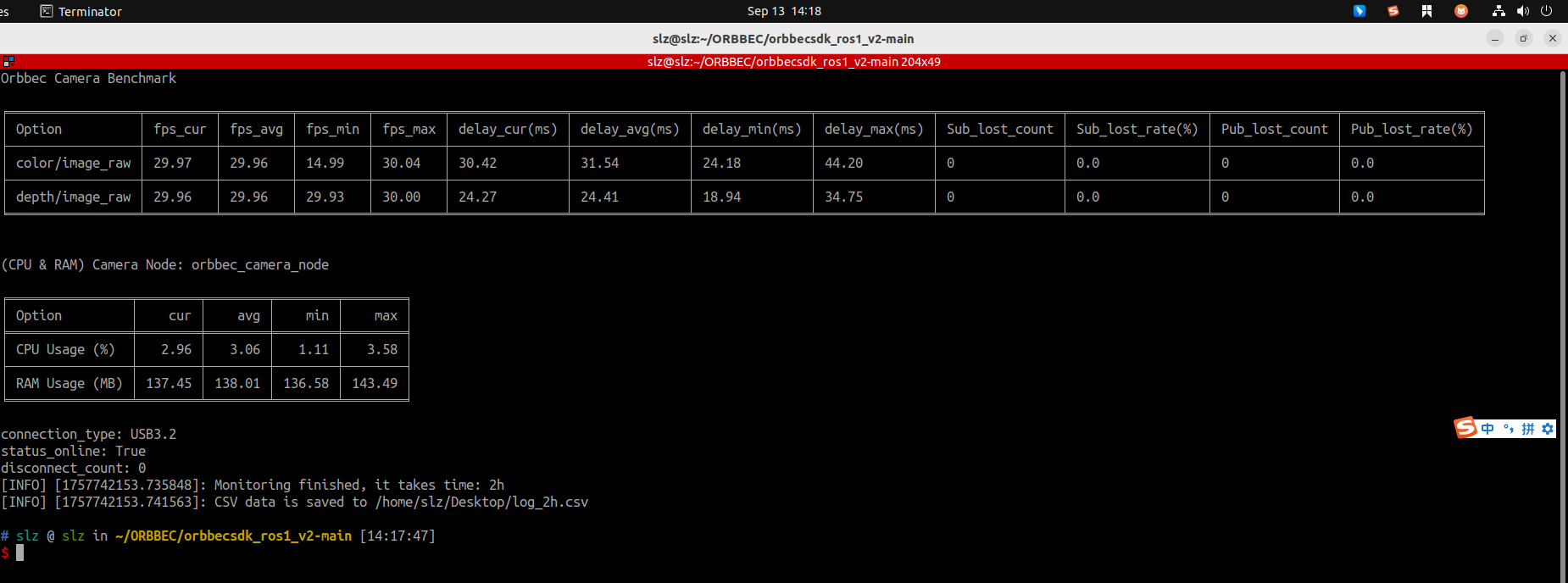

common_benchmark_ros1

Run with default settings:

rosrun orbbec_camera common_benchmark_node.py --run_time 30s

Run with a custom CSV output path:

rosrun orbbec_camera common_benchmark_node.py \
  --run_time 2h \
  --csv_file /path/to/log.csv

Multi-camera monitoring example:

rosrun orbbec_camera common_benchmark_node.py \
  --run_time 1h \
  --csv_file /tmp/cam_log.csv \
  --camera_names camera,camera01

Parameters:

  • --run_time / _run_time: Monitoring duration. Supported formats include 10s, 5m, 1h, and 2d. The default is 10s.

  • --csv_file / _csv_file: Output CSV file path.

  • --camera_names / _camera_names: Camera name list, separated by commas.

6.5.2. service_benchmark_node.py

service_benchmark_node.py monitors service call performance. It calls multiple services from a YAML configuration file and reports call count, success rate, average time, minimum time, and maximum time.

Features:

  • Benchmarks multiple services defined in a YAML configuration file.

  • Builds requests automatically from the active ROS service type.

  • Can save benchmark results to a CSV file.

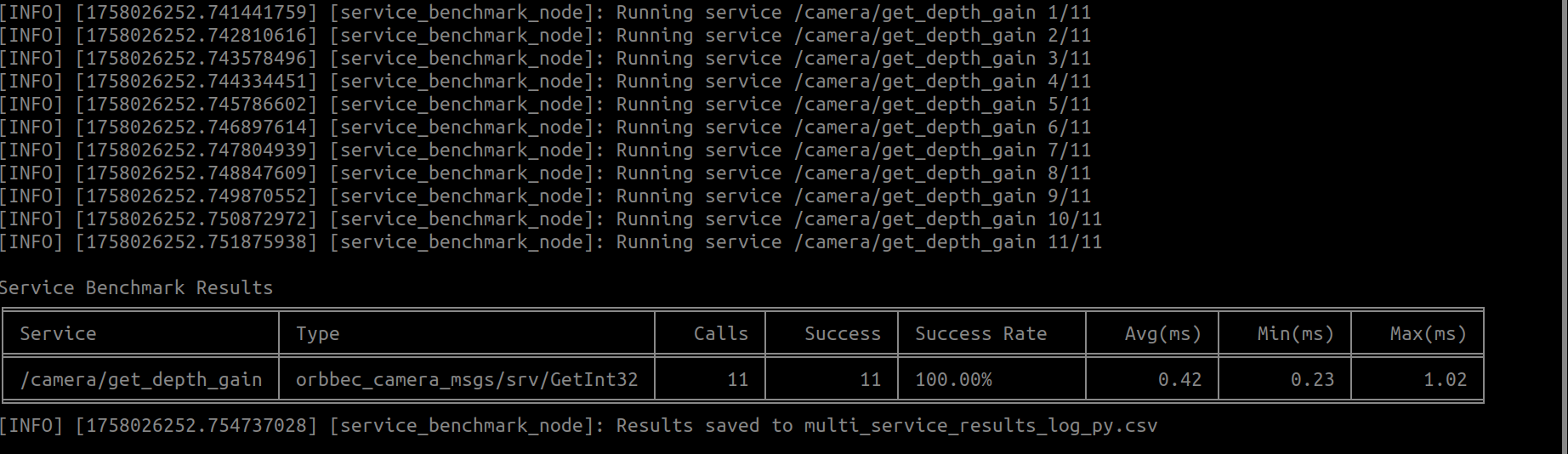

service benchmark

Multiple services benchmark (YAML configuration + CSV output):

rosrun orbbec_camera service_benchmark_node.py \
  --yaml_file /path/to/default_service.yaml \
  --csv_file /path/to/results.csv

The example YAML configuration is available at scripts/default_service.yaml. default_count is used when an entry does not specify its own call count.

6.5.3. service_benchmark_node

service_benchmark_node is the C++ service call benchmark tool. The Python version, service_benchmark_node.py, is recommended for most cases because it can batch-test services from YAML and write CSV output.

Single service benchmark:

rosrun orbbec_camera service_benchmark_node \
  _service_name:=/camera/set_color_ae_roi \
  _service_type:=orbbec_camera/SetArrays \
  _request_data:='{data_param: [0, 1279, 0, 719]}'

Multiple services benchmark (YAML configuration):

rosrun orbbec_camera service_benchmark_node \
  _yaml_file:=/path/to/default_service_cpp.yaml

6.5.4. Benchmark Recommendations

  1. Start with a small service set to verify network and device stability, then expand to the full service list.

  2. For long runs, write --csv_file to a persistent directory.

  3. Archive results by device and date for trend analysis.

  4. If abnormal latency appears, inspect the /camera/device_status topic together with the benchmark result.

For a complete service YAML example, see scripts/default_service.yaml in the source tree.
